Meter Reading records are records used to represent Meter Readings made from Assets. These records must be created from Asset records but new readings can be made directly from the Meter Reading record.



Creating New Meter Readings

To create a new Meter Reading use the following steps:

1. Select Assets.
2. Select an Asset Class.
3. Select the Asset record the Meter will be attached to.
4. Select Edit.
5. Under Meters select Add.
6. Enter in required information.
7. Select OK.
8. Select Save.





How to Fill Out a Meter Reading Record



Asset Record

Meter ID: This field determines the name of the Meter.

Description: This can be used to provide additional details.

Unit: This determines the Unit of Measure of the Meter.

Replace/Add

• Add - This will add the new value of the meter reading to the current meter reading.
• Replace - This will replace the old value of the meter reading with the new meter reading.

Rollover Point: This determines the point at which the Meter rolls back to zero.

Rollover Count: This displays how many times the Meter has rolled over.

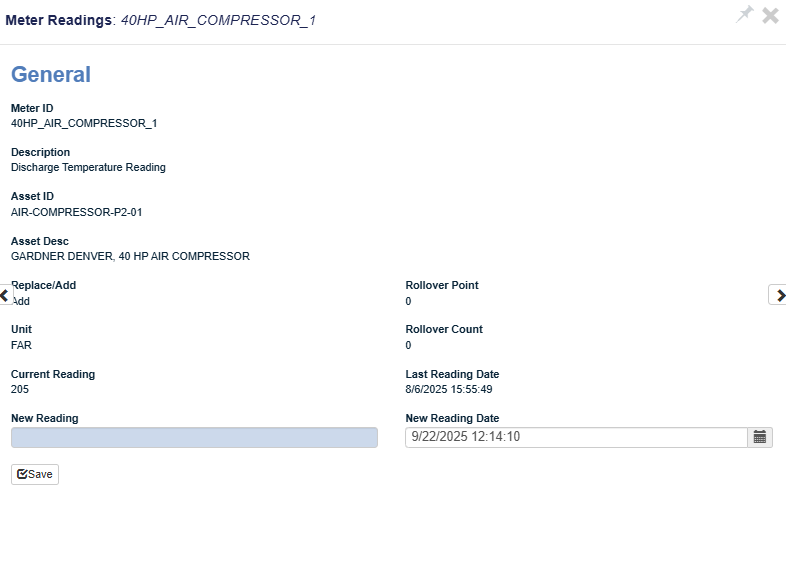

Meter Reading Record

Meter ID: This field determines the name of the Meter.

Description: This can be used to provide additional details.

Asset ID: This displays which Asset this Meter is linked to.

Asset Description: This is the Description of the linked Asset.

Replace/Add: This determines whether new Meter Readings will be entered as Replace or Add.

Unit: This determines the Unit of Measure of the Meter.

Current Reading: This is the current reading of the Meter.

New Reading: This is the New Reading that is being entered.

Rollover Point: This determines the point at which the Meter rolls back to zero.

Rollover Count: This displays how many times the Meter has rolled over.

Last Reading Date: This displays the last date a Meter reading was entered.

New Reading Date: This displays the date for the new Meter reading that is currently being entered.
