The PM Completion widget is one of the custom widget options that can be accessed in the Data Analysis widget.

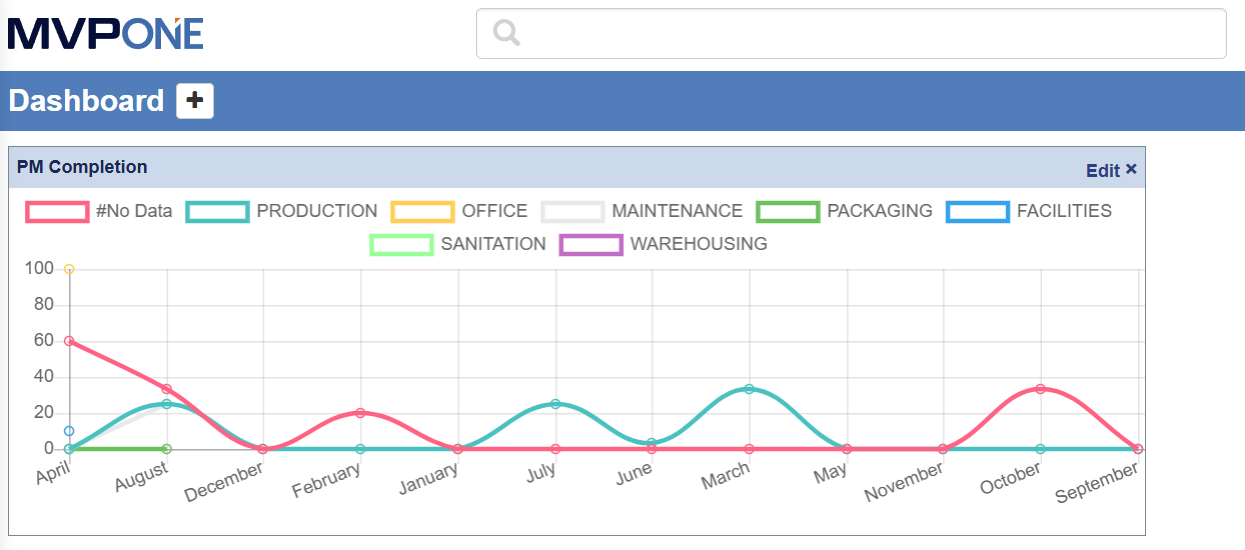

This widget displays how PM Completion rates have changed over time.





Steps to Set Up Widget:

1. Select plus sign from the Dashboard.
2. Check off the "Analytics - Custom" option.
3. Select Add Widget.
4. Under the Report ID dropdown select "PM Completion."
5. Enter Title.
6. Select Chart Type under dropdown.
7. Select Date Range.
8. Select Group By option.
9. Select OK.

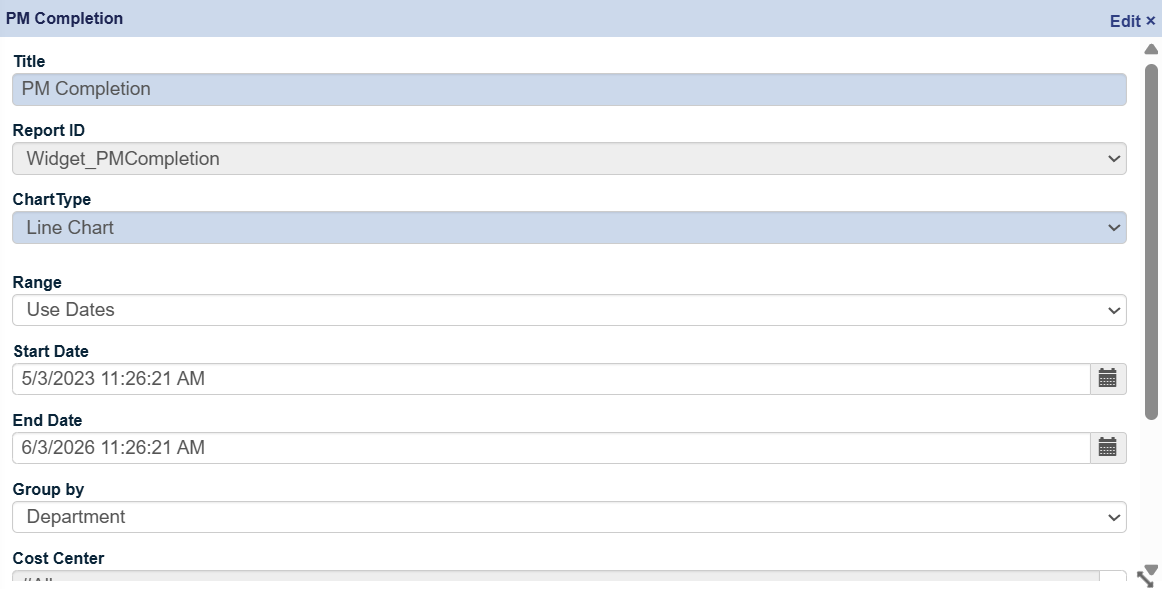

Widget Fields

Title: Use this field to enter the widget title.

Report ID: This field displays the report that is being displayed.

ChartType: Use this field to select the chart type that is being displayed.

Range: This field determines the date range of the data that is being displayed.

Start Date: This field sets the start date used with the "Use Dates" date range.

End Date: This field sets the end date used with the "Use Dates" date range.

Group By: This field determines how the date is visually grouped.

Cost Center: Use this field to select which Cost Centers are included in the data.

Asset Type: Use this field to select which Asset Types are included in the data.

Department: Use this field to select which Departments are included in the data.
